This appendix Web page provides an overview of the lab setup used in this book to explore authentication technologies and capture traffic.

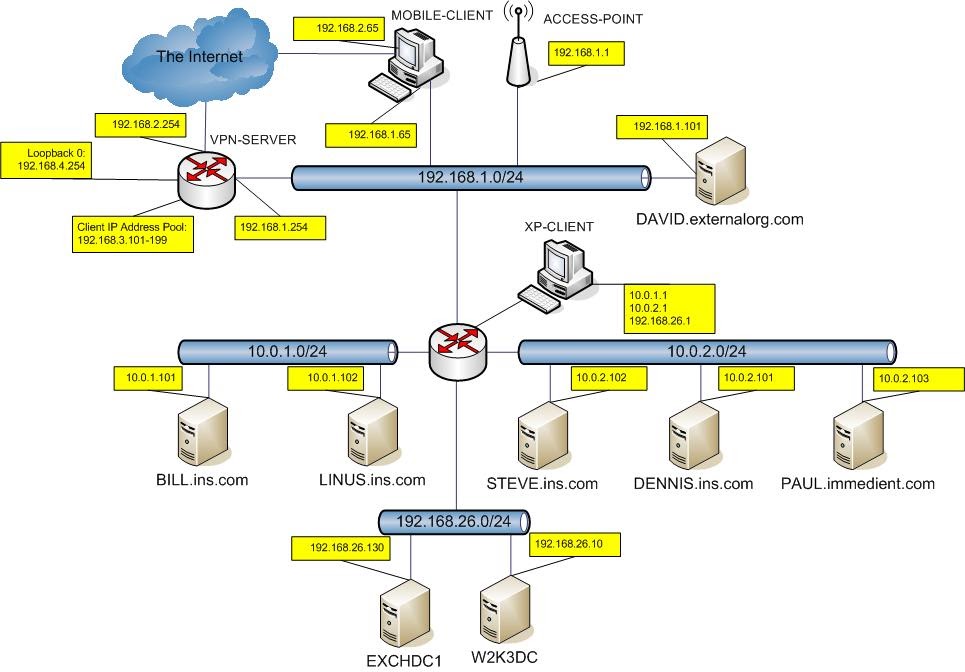

You may also have a look at the full size diagram, or the PDF version.
| Computer/Device | IP Address | Software/Hardware/Firmware | Description |
|---|---|---|---|
| BILL | 10.0.1.101 | Windows 2003 SP1 | Domain Controller, ins.com domain Primary DNS server LDAP Server (Active Directory) |
| STEVE | 10.0.2.102 | Windows 2003 SP1 Cisco SecureACS 3.0(2) MS SQL Server 2000 | Member Server, ins.com domain |
| DENNIS | 10.0.2.101 | Linux/Fedora Core 4 | ins.com domain member |
| LINUS | 10.0.1.102 | Linux/Fedora Core 4 | ins.com domain member |
| PAUL | 10.0.2.103 | Windows 2003 SP1 | Domain Controller, immedient.com domain |
| DAVID | 192.168.1.101 | Windows 2003 SP1 | Domain Controller, externalorg.com domain |
| EXCHDC1 | 192.168.26.130 | Windows NT4 SP6 Exchange Server 5.5 SP4 | Domain Controller – NT 4.0 domain, Mail Server |
| W2K3DC | 192.168.26.10 | Windows 2003 SP1 | External Domain Controller |
| XP-CLIENT | 10.0.1.1 10.0.2.1 192.168.26.1 | Windows XP SP1 | Client computer for traffic capture |
| MOBILE-CLIENT | 192.168.1.65 192.168.2.65 | Windows XP SP1 | Client for remote access testing |
| VPN-SERVER | 192.168.2.254 192.168.1.254 | Cisco 1720 Router IOS C1700-ADVSECURITYK9-M | VPN Server |
| ACCESS-POINT | 192.168.1.1 | Linksys WAG354G Firmware: 1.01.03 | Wireless Access Point, CorporateWF zone |
